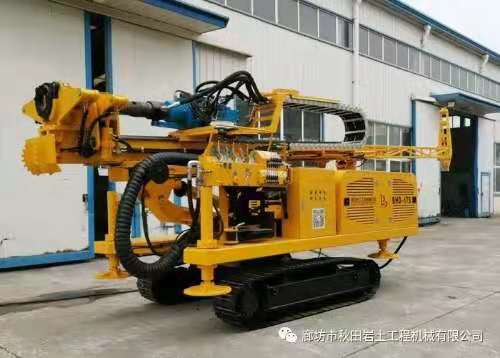

Electric Anchor Borehole And Soil Nail Borehole Highway Drill Rig With ISO 9001 BHD - 175
BHD-175 hydraulic anchor drilling rig with center rotating table is suitable for multi-position drilling works. With compact and sturdy structure, it can be used for anchor borehole,anchor nail borehole and root pile borehole drilling with multiple drilling techniques at higher drilling efficiency.
Advantage:
1. The machine is non-sophisticated in structure, safe and reliable.
2. Longer service life.
3. Advanced design, manufacture rigorous; stable quality and high efficiency.
4. Products can be adapt to user’s multiple usages.
5. To provide you with perfect service and remote technical guidance.
Quick Detail:
* Compact design
* Easy to operate
* Multi-function application
* Long service life
Specifications:
| Rated power (kW) | 55+55+18.5+2.2 |
| Caterpillar Band Model No. | LG-135 |
| Tramming Motor | Double-speed |
| Tramming speed (m/h) | 580/820 |
| Ground pressure (N/cm2) | 5.68 |
| Gradeability (°) | 25 |
| Rotation rate at low gear (r/min) | 0~36,0~72 |
| Rotation rate at high gear (r/min) | 0-36/66/79 0-72/132/158 |
| Torque range at high gear (Nm) | 5800/11600 |
| Torque range at low gear (Nm) | 6800/13600 |
| Impact work (N*m) | 750 |
| Percussion frequency (min1) | 1400 |
| Feed stroke(mm) | 3500 |
| Feed force(kN) | 38 |
| Retraction force(kN) | 76 |
| Feed rate(m/min) | 0-18.5 0~75 |
| Retraction rate(m/min) | 0-9.5 0-38.5 |
| Feeding Pattern | Cylinder + Chain |
| Clamp range(mm) | 60-219 |
| Maximum passing diameter(mm) | 260 |
| Dimension(mm) | 7000x2200x2900 |
| Weight(T) | 11 |
Service:
Our company is professional at developing, producing and marketing diversified anchor drill rigs. Based on learning and deep understanding foreign advanced technology, we developed independently BHD series of multifunctional hydraulic anchor drill rigs. Various types of anchor drilling rigs have been successfully put on market, they find usage at anchor and micropile engineering field for construction pit, subway, tunnel, railway, highway and disaster relief projects with higher productivity.
