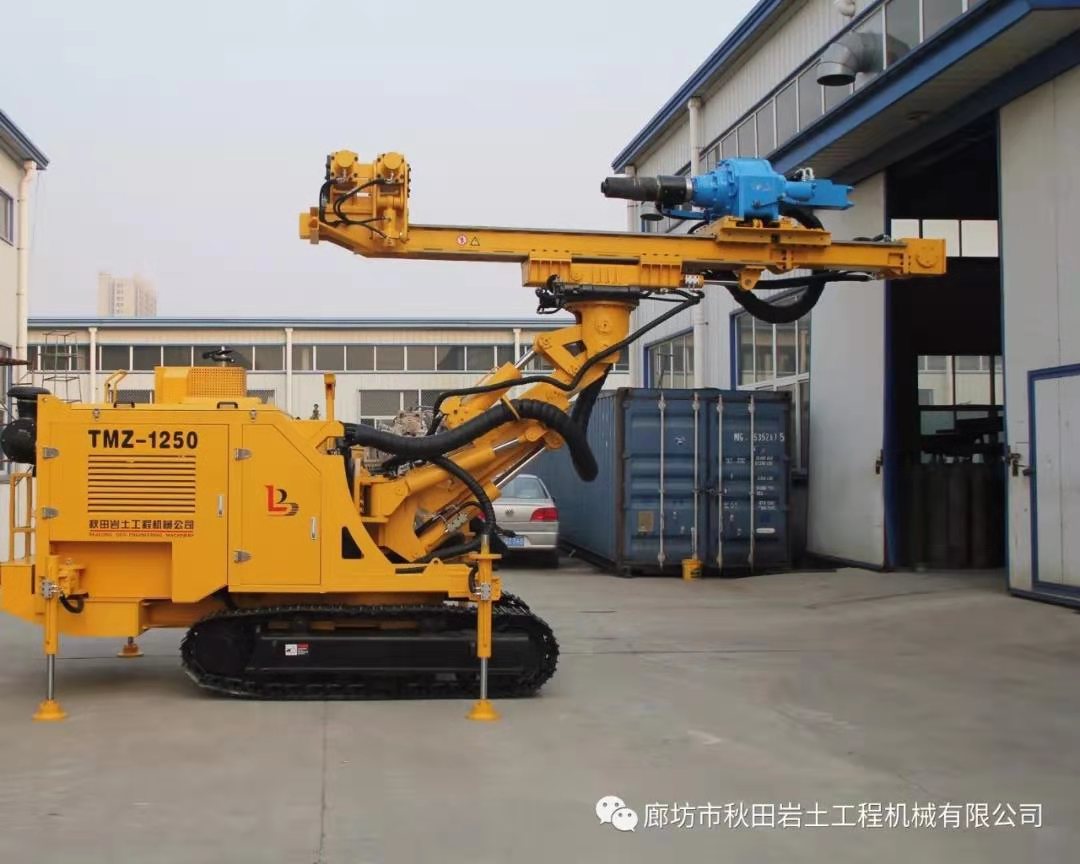

Narrow Spaces Applicable Drilling And Micropile Highway Drill Rig TMZ-1250
- TMZ-1250 hydraulic anchor drilling rig is designed specially been used for anchor borehole drilling in small tunnels or some none-spacious places.
- With compact structure and articulation system combined with rotating tables it can be used for multi-position with multi-angle anchor borehole drilling.
- The advantage is that it can be flexible and efficiency working in small tunnels and none-spacious places.
- This rig is bright in color, conspicuous.It is flexible,easy to operate and safe to use. We will provide you with complete and detailed instructions with one year warranty.
-
It is a full hydraulic machine.
- It can be used in many fields such as pipe-shed ,micropile,grout jetting,deep foundation pit,highway slope stabilization and railway bed stabilization.
- It is favored by many customers because of its efficiency and stable performance.
Our company
Our company is expertise at designing and manufacturing drilling equipment for our customer's solutions of all needed jobs such as anchors for slope stabilization and modern foundation execution,jet grouting, freezing borehole drilling in tunnel, auger boring as well as micropile. Our drilling rigs found their usage to bridges, railways, underground lines, motorways, tunnels and buildings all over the world.
QUA-TEC is staffed with experienced and skilled workers and engineers most of them coming from well-known drilling research institution, which provide solution for drilling requests since early seventies.
Our advantages:
1). As a manufacture,we have 10 years producing experience
2). Got ISO9001
3). With competitive price,short lead-time.
4) .We have professional and technical QC team to ensure 100% products checking.
5). Efficient sales team and excellent customer service
6). Compact design,multi-function application
7). Stable with long service life
Quick Detail:
1. Convenient, high efficiency
2. High quality
3. Reasonable price
4. Good service
Specifications:
| Engine Model No. | QSB4.5-C160 |
| Emission level | III |
| Rated power(KW) | 123kW @2200rpm |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 1.4 |
| Ground pressure (N/cm2) | 5.8 |
| Gradeability(°) | 20 |
| Rotation rate at high gear (r/min) | 0~46,0~72 0~92,0-144 |
| Rotation rate at low gear (r/min) | 0~32,0~50 0~64,0-100 |
| Torque range at low gear(Nm) | 12000/8500 |
| Torque range at high gear(Nm) | 6000/4250 |
| Percussion frequency(min1) | 1150 |
| Impact work(N.m) | 750 |
| Feed stroke(mm) | 2500 |
| Feed force(kN) | 50 |
| Retraction force(kN) | 50 |
| Feed rate(m/min) | 0~10 0~50 |
| Retraction rate(m/min) | 0~10 0~50 |
| Clamp range(mm) | 60 ~ 168 |
| Maximum passing diameter(mm) | 210 |
| Dimension(mm) | 5900x1500x2850 |
| Weight(T) | 10 |
